All Categories - X Cable Tech Co.,Ltd
All
Cutting Machine
Stripping Machine
Cutting and Stripping Machine
Semi Automatic Crimping
Full automatic Crimping
Tinning and Soldering Machine
Winding and Tying Machine
Wire Feeding Machine
Other Machine
X-S003-2015 Pneumatic wire stripping machine
X-S003-2015 Pneumatic wire stripping machine, high precision wire stripper Feature: 1. Pneumatic control, easy operation. 2. High precision without damaging the core wire. 3. Adaptation line 0.3-2.mm 4.Easy to test the tension of the terminal and wire. 5. Test strength 0-50KG Technical data: Wire Size Range 0.03 – 2.08 mm² (32 – 14 AWG) Max. Outer Cable Diameter 3.2 mm (0.12“) Stripping Length Increments Full strip: 0.5 mm (0.019“) Partial strip: 2 mm (0.078“) Precision of Diameter Setting 0.01 mm (0.001“) Max. Strip Length 20 mm Cycle Time approx. 0.3 s Dimensions (L x W x H) 265 x 70 x 135 mm (10.4“ x 2.8“ x 5.3“) Weight Net: 2.0 kg (4.4 lbs.) Gross: 3.0 kg (7.7 lbs.)

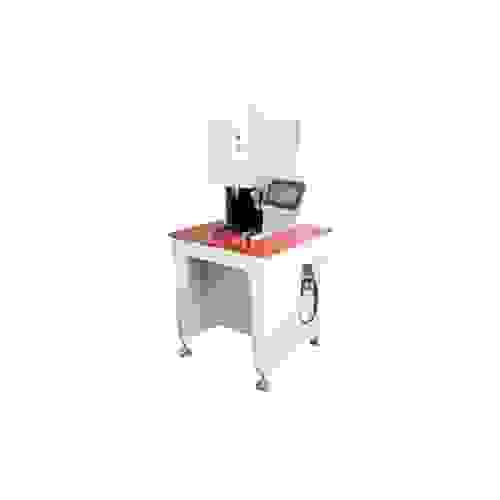

X-CM8T Servo crimping machine
Power：220V 50-60Hz 1.5KW Crimping capacity：8T Crimping stroke：30mm Dimension：660X500X1500mm Weight：100kg Warranty：1 year
X-CM15T Servo crimping machine
Power：220v50Hz 2.3KW Crimping capacity：15T Crimping stroke：60mm Crimping width：12.5mm Dimension：740X740X1500mm Weight：460Kg Warranty：1 year
X-Q100 Tape cutting machine
Tape cutting machine plastic pvc pipe cutting machine pipe cut machine Power：220V 50-60HZ 200W Cutting Thickness：50mm Cutting method：Cylinder cut off Cutting diameter：ø1-ø30mm Cutting width:80mm Cutting tolerance：±0.5+Lx0.002mm Dimension：570x490x460mm Weight：70Kg Warranty：1 year
X-M01A
PVC pipe cutting machine Corrugated pipe cutting machine Rubber pipe cutting machine Power：220V 50-60HZ 1200W Cutting Thickness：60mm Cutting method：Cylinder cut off Cutting diameter：ø1-ø60mm Cutting tolerance：±0.5+Lx0.002mm Dimension：1020X530X1300mm Weight：270Kg Warranty：1 year
X-B60 Automatic corrugated pipe cutting machine 60mm
PVC tube cutting machine, pipe profile cutting machine,Precision tube cutting machine Power：220V 50-60HZ 500W Cutting Thickness：60mm Cutting method：Cylinder cut off Cutting diameter：ø5-ø60mm Cutting tolerance：±0.5+Lx0.002mm Dimension：850X700X680mm Weight：96Kg Warranty：1 year
X-B30S Camera positioning cutting machine
Vision positioning pipe cutting machine Camera positioning Corrugated Tube Cutting Machine Power：220V 50-60HZ 300W Cutting Thickness：30mm Cutting method：Cylinder cut off Cutting tolerance ：Lx0.001±0.2mm Weight：270KG Warranty：1 year
X-B30P cutting tube pipe machine with Split function
High-precision cutting tube pipe machine with Split function Power：220V 50-60HZ 700W Cutting Thickness：30mm Cutting method：Motor cut off Cutting diameter：ø5-ø30mm Cutting tolerance：±1% Dimension：580X470X500mm Weight：70Kg Warranty：1 year
X-B30C Automatic corrugated pipe cutting machine with Feeding machine
Automatic corrugated pipe cutting machine with Feeding machine Power：220V 50-60HZ 1100W Cutting Thickness：30mm Cutting method：Motor cut off Cutting diameter：ø5-ø30mm Cutting tolerance：±1% Dimension：1400X670X1400mm Weight：70Kg Warranty：1 year
X-B30X Rotary knife
High-precision Rotary knife pipe cutting machine Power：220V 50-60HZ 750W Cutting Thickness：8mm Cutting method：Motor cut off Cutting diameter：ø5-ø42mm Cutting tolerance：Lx0.001±0.2mm Dimension：540X560X570mm Weight：70Kg Warranty：1 year
X-B30 Automatic corrugated pipe cutting machine 30mm
Power：220V 50-60HZ 300W Cutting Thickness：30mm Cutting method：Motor cut off Cutting diameter：ø5-ø30mm Cutting tolerance：±1% Dimension：580X470X500mm Weight：70Kg Warranty：1 year

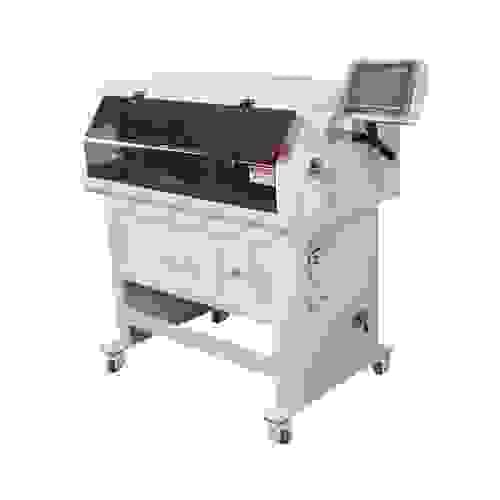

X-8030G High-speed Stripping Machine Max Stripping range 30mm²
High-speed type: suitable for wires under 16 square meters, short stripping heads, high-speed stripping and cutting Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：max Φ10mm Stripping length：Full front：1-190mm；Full rear：1-80mm half front：1-1500mm；half rear：1-500mm Stripping range：0.75-16mm² Speed：3000 PCS/hour Warranty：1 year
X-8030 Wire Stripping Machine Stripping Max range 30mm²
Power：220V 2000W Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：max Φ16mm Stripping length ：Full front：1-190mm；Full rear：1-80mm half front：1-1500mm；half rear：1-500mm Stripping range：1-30mm² Weight：200kg Speed：2000 PCS/hour Warranty：1 year
X-8030YJ All-in-one machine
All-in-one machine，Multifunctional Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：max Φ16mm Stripping length：Full front：1-190mm；Full rear：1-80mm half front：1-1500mm；half rear：1-500mm Stripping range：1-30mm² Speed：2000 PCS/hour Warranty：1 year

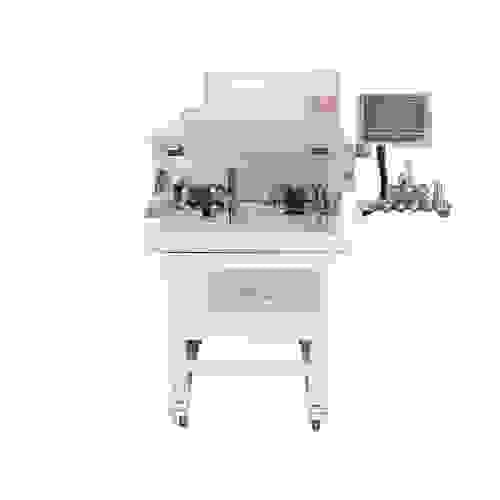

X-8030HYJ Sheathed cable inner and outter stripping All-in-one machine
Inner and outter stripping at the same time Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：max Φ16mm Stripping length：Full outer sheath front：10-150mm；Full inner core front：1-50mm Full outer sheath rear：10-80mm； Full inner core rear：1-50m Stripping range：1-30mm² Speed：2000 PCS/hour，Sheathed Wire 800PCS/hour Warranty：1 year
X-8120 Wire Stripping Machine Max stripping range 120mm²
X-8120 Wire Stripping Machine Max stripping range 120mm² Power：220V 50HZ 2500W Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：Φ25mm Stripping length：Front：1-800mm Rear：1-260mm Stripping range：10-120mm² Speed：1800 PCS/hour Dimension ：1150*760*1340mm Warranty：1 year
X-8300 Extra large wire stripping machine Max stripping range 150mm²
Power：220V 50HZ 11.7KW Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：Φ15-50mm Stripping length：Front：1-1000mm Rear：1-300mm Stripping range：30-300mm² Speed：500-1000 PCS/hour Warranty：1 year
X-8070 Wire Stripping Machine Max stripping range 70mm²
Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：Φ25mm Stripping length：Front：1-800mm Rear：1-260mm Stripping range：1-70mm² Speed：1800 PCS/hour Warranty：1 year
X-8050 Wire Stripping Machine Max stripping range 50mm²
Cutting length：1mm-99999.99mm Cutting tolerance：0.002*L Available wire size：Φ20mm Stripping length：Full front：1-190mm；Full rear：1-80mm half front：1-1500mm；half rear：1-500mm Stripping range：1-50mm² Speed：2000 PCS/hour Warranty：1 year
X-S003-2016 Electric type cable stripping machine
Versatile uses ● Suitable for single-conductor wires and inner wires of multi-core cables with size of 4 mm². ● Strip length up to 20 mm. ● Universal V-blades without blade change Simple operation ● Automatic trigger via sensor. Three dials for easy adjustment ● Large LED display of the incision diameter with 0.01 mm resolution Compact and mobile ● Electric drive for versatile use ● Ergonomic carry handle for easy transport Max. Stripping length：20mm Diameter setting accuracy：0.01mm Processing time：2pcs/s Available wire size：0.03-4mm2 Weight：4.5Kgs Dimension：380*85*188mm Power supply ：220V/110V/50HZ/60HZ
