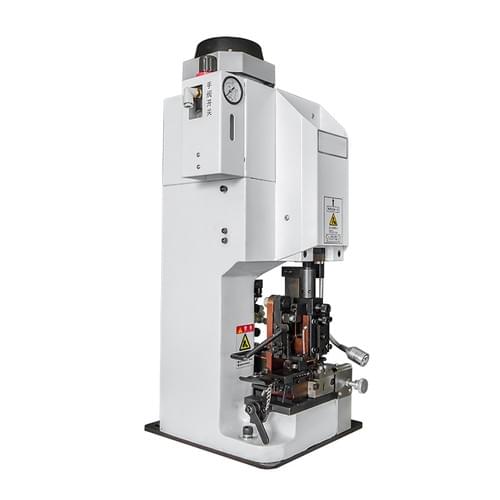

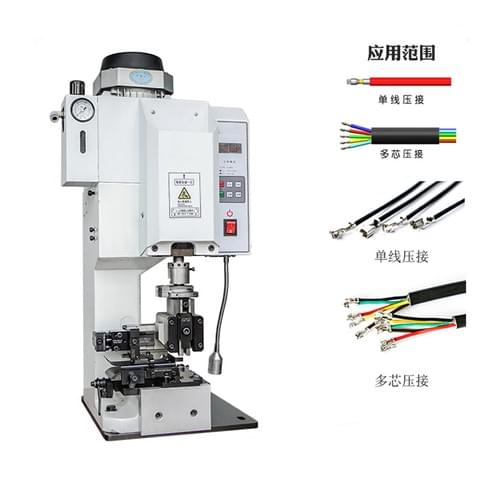

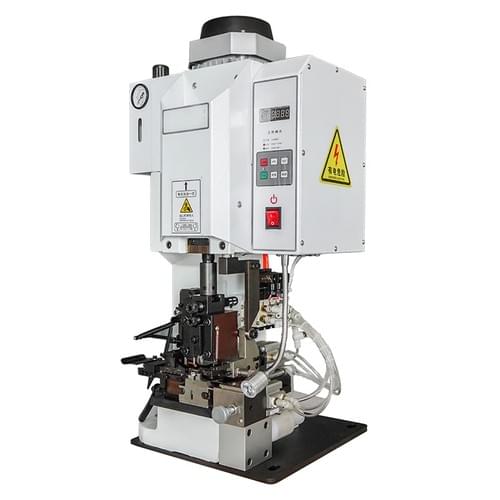

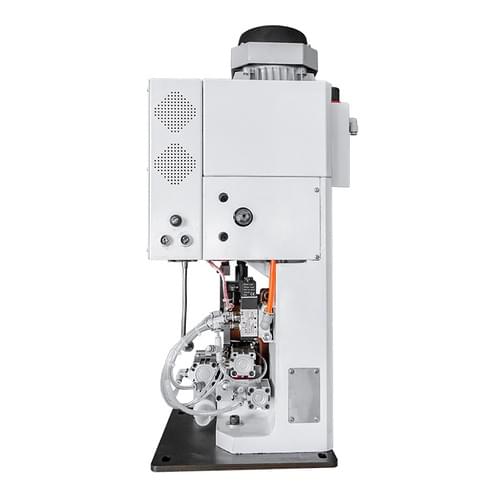

X-CM102A ( Stripping and Crimping )

Feature

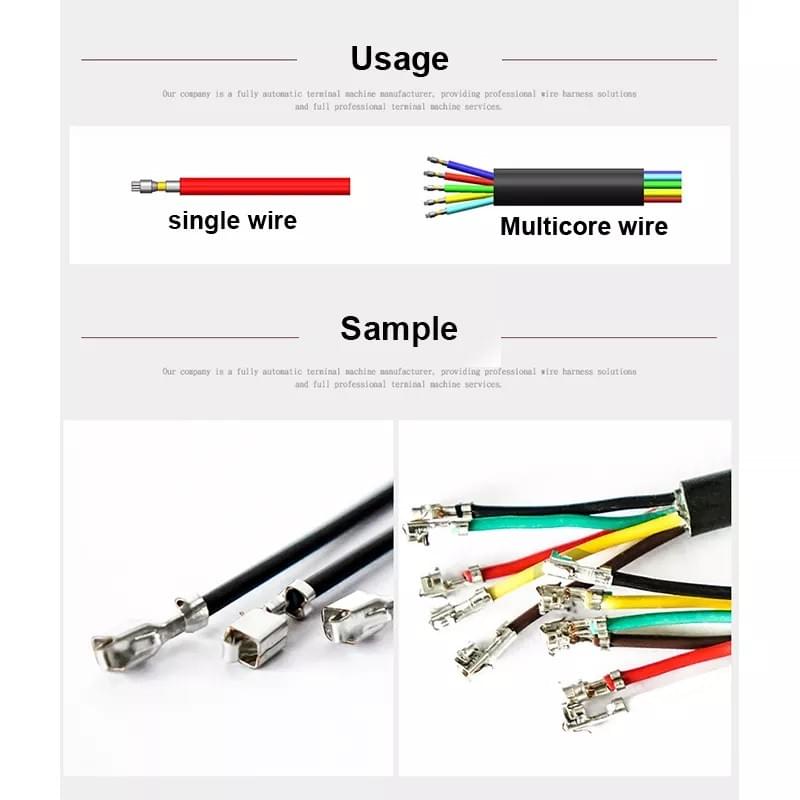

This series machine supports wire stripping and terminal crimping in one time. Mainly used for computer core wire, isolation wire,
telephone wire, USB data cable, headphone cable and other multi-cores cable and flat cable.

Main features:
1. Wire stripping and crimping terminals are completed in one step
2. Microcomputer control, driven by cylinder, accurate positioning and work fast
3. The stripping waste jacket is vacuum suctioned, clean and convenient
4. Small noise, the motor just works when foot pedals
5. Can adjust the gas valve to change the speed

Model Number： X-CM102A
Usage： Stripping and Crimping
Crimping force： 1.5T(2T 3T available)
Wire Size： AWG28-AWG18 (can be customized)
Stripping Length： 0-10mm
Voltage： 220V~50hz
Power： 750W
Weight： 60kg
Dimension： 500*410*770mm
Air pressure： 0.4-0.6mpa
Packing： Plywood
Warranty： 1 Year
