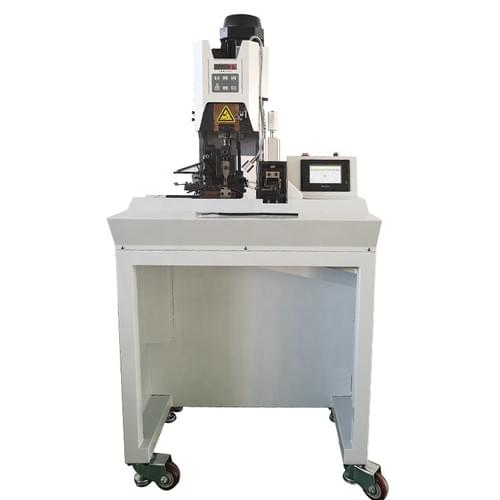

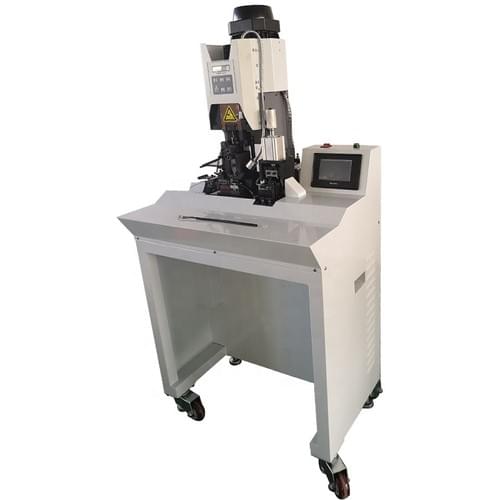

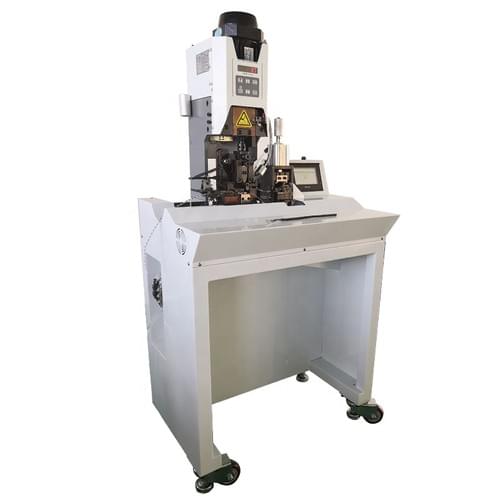

X-CM102B （Stripping and crimping for multi-core cable）
Automatic Multi-core cable striping and crimping machine, Sheathed cable wire stripping crimping machine

The machine is designed for sheathed cable, multi-cores cable inner cores stripping and terminal crimping. It is really easy to operate and maintain. Worker just need to put the stripped sheathed cable on the machine, the machine will automatically strip wire, crimping terminal. It can process 1-12 multi-cores cable, Teflon and silicon wires are not suitable for this machine

Feature

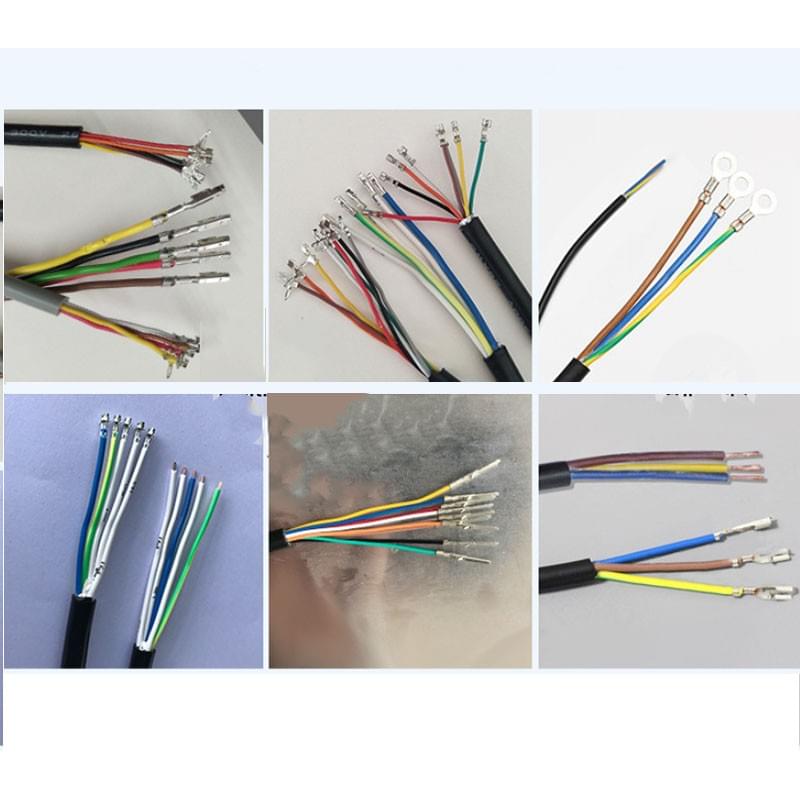

1. Widely range of applications, 1-12 cores cables are all available
2. Fully automatic completion of stripping and crimping terminals, high efficiency
3. Equipped with OTP standard applicator, easy to change and maintain
4. Automatic tidy the inner cores, and there is a backing part for putting the wire. Simple

Model：X-CM102B
Function：Stripping and crimping for multi-core cable
Power Supply：220V/ 50~60hz
Power Rate：850W
Crimping Force：2Ton
Stripping Length：1-7mm
Available wire quantity：12 cores
Jacket stripping length required：>38mm
Speed：700-800pcs/h
Dimension：110*90*150cm
Weight：85kg
