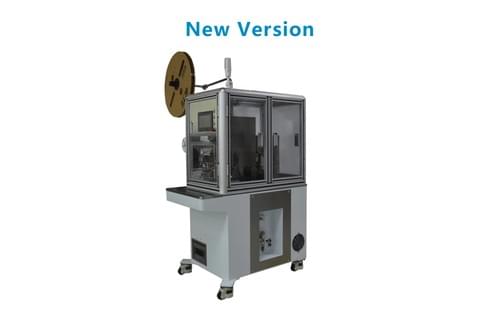

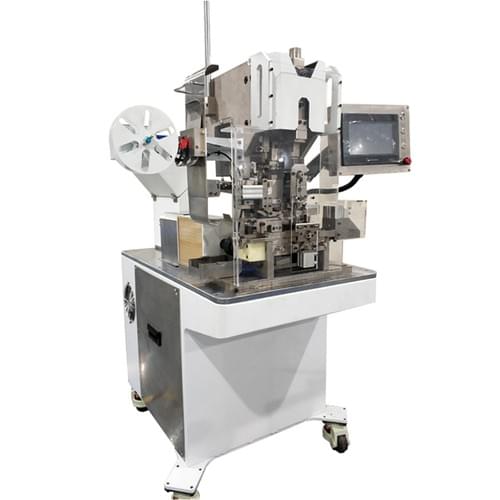

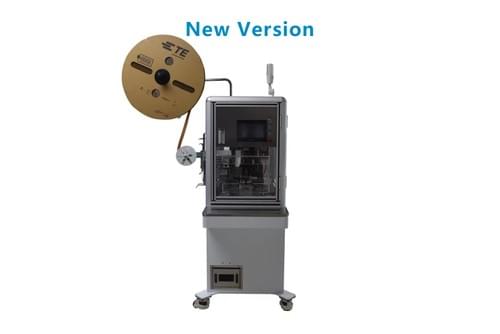

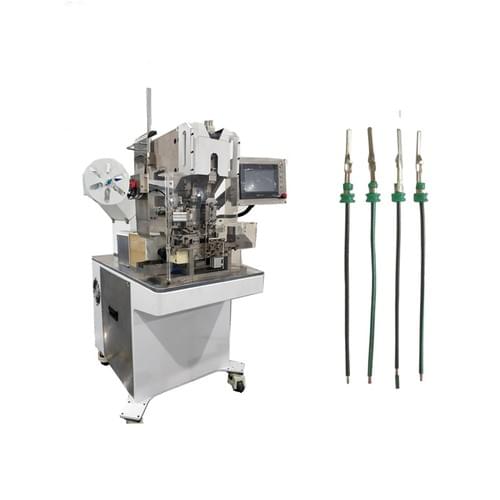

X-CM102D (Stripping,Sealing and Crimping)

Place of Origin: Guangdong, China
Brand Name: X cable Tech
Model Number: X-CM102D
Usage: Multifunctional

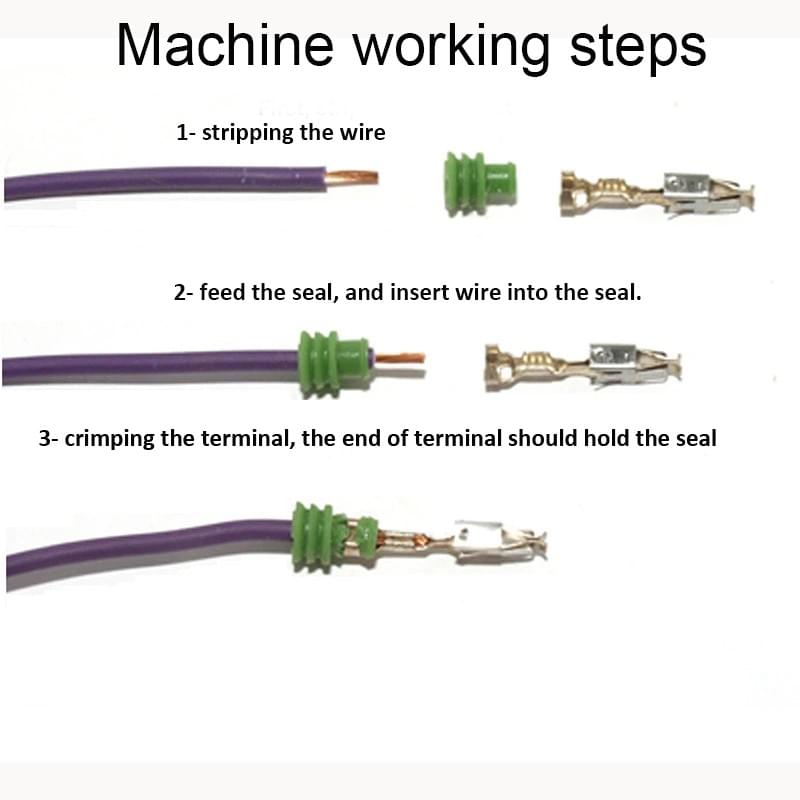

Function: Wire stripping, sealing, and crimping machines
Stripping length: 0-10mm
Capability： 1200 pcs/h
Working Capacity: 0.2mm² — 2.5 mm²
Power: AC 200V 50HZ
Air pressure: 0.5~0.7mpa
Crimp capacity: 3 T
Weight: 350kg
Dimension: 1100mm*920mm*1600mm
Seal size: ≤ Dia.10*10 mm²
Warranty: 1 Year
