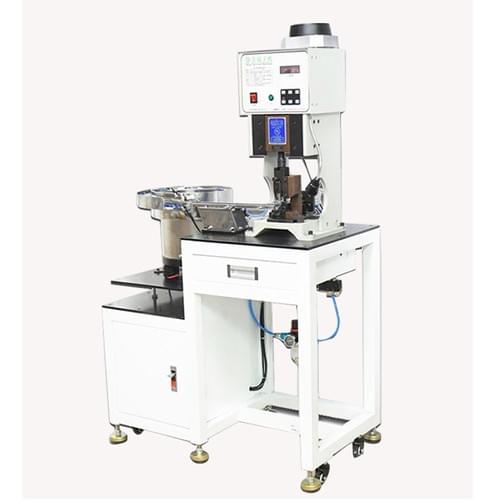

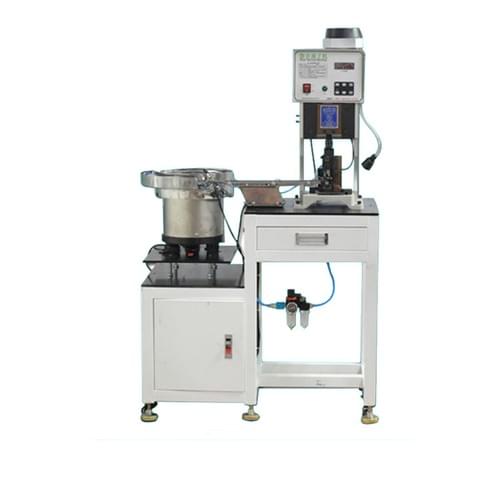

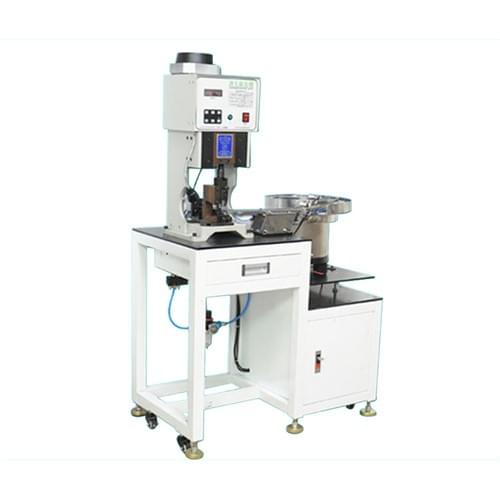

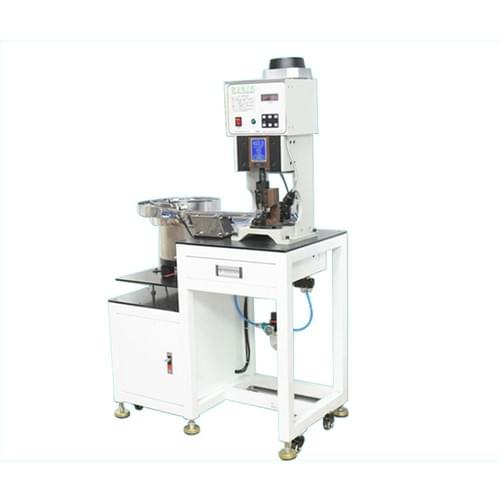

X-CM103A （loose terminal）
1. Based on the 2T terminal crimping machine,it adopts cassette mould which is easily changed.
2. It's controlled by micro-computer CMOS chip,with humanity program-design,which is more safe and reliable.
3. By replacing expensive reel termainal,the loosing terminal are more economy.
4. It adpots centrifugal libration feeding,frequency conversion speeding adjusting ,cylinder precision location,and unite connecting satandard.
5.Compared with the reel terminals,the running speed of the loose terminals can be the same,and the later should be more
labor-saving and economy,also the cost performance takes more advangates.
6.It adopts the special moving wheels,which make the moving more convenient.
7.If it needs,it can be used as 2T crimping machine,allocated with 800.or 2000type,side-feed and rear-feed mould.

Model： X-CM103A

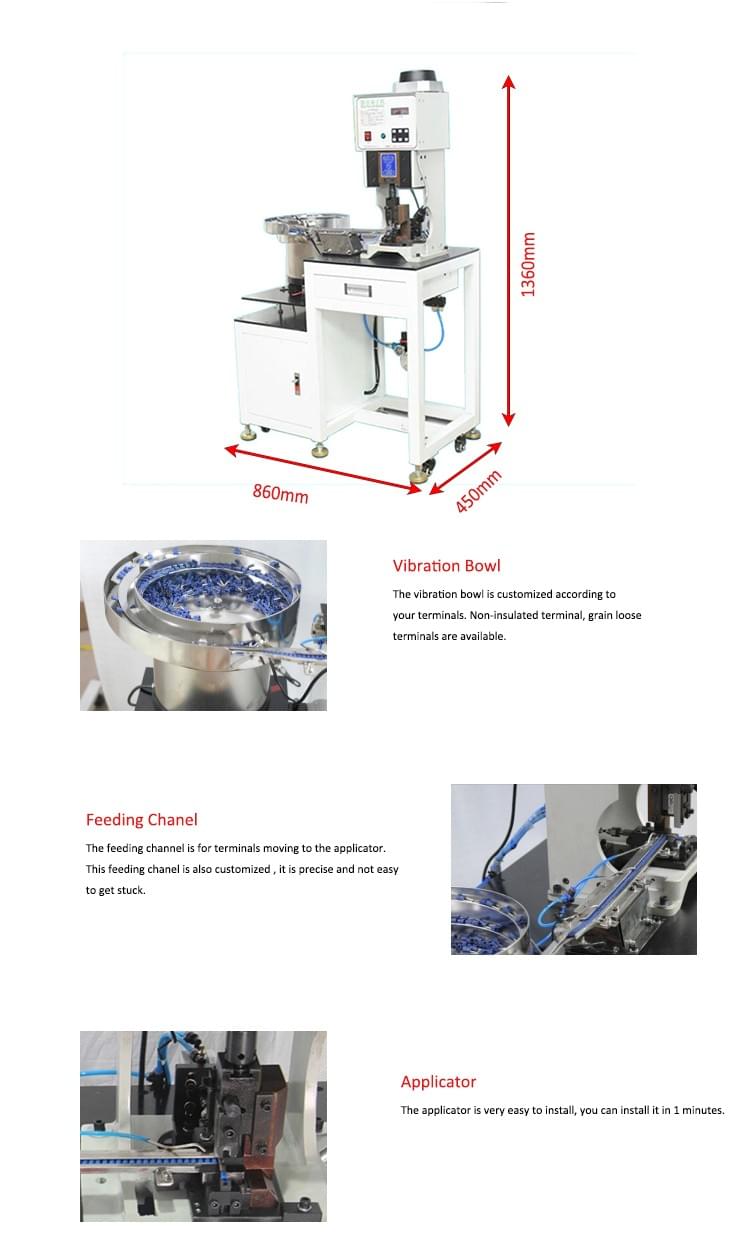

Dimension ： 460*850*1260mm
Voltage： 220V/50~60hz
Consumer Rate： 500W
Crimping Force： 2.0Ton
Stroke： 30mm
Crimping Speed： 120pcs/minutes
Closing height： 126mm
Adjust of closing height： 10mm
