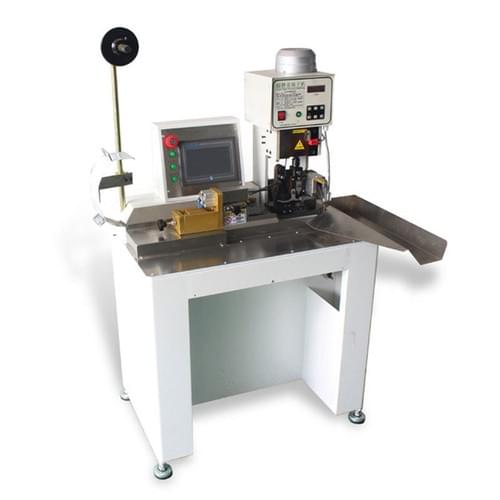

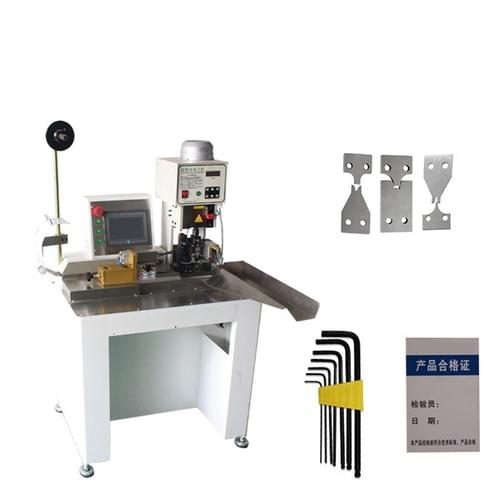

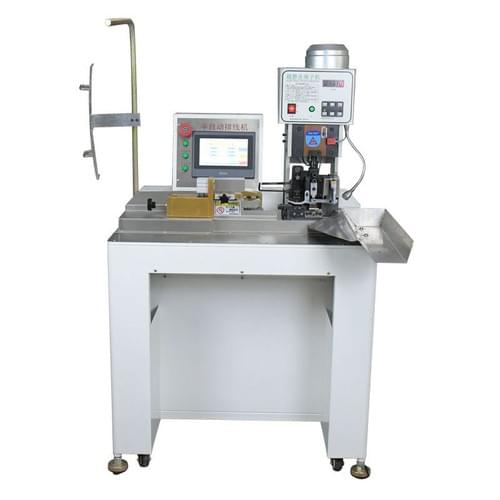

X-CM105A

Automatic ribbon cable crimping machine
Flat multi-wire planar cable crimping machine

Feature
1.X-cm105A is an automatic terminal cable machine with high speed for crimping ribbon and flat wires. It can be replaced with OTP transverse mode.
2. Simpler operation than the old model, quick commissioning, up to 10K harness terminal / hour.
3. Adopting new CNC debugging parameters and LCD display, greatly reducing the labor intensity of workers and improving production efficiency.
4. There is no need to train.

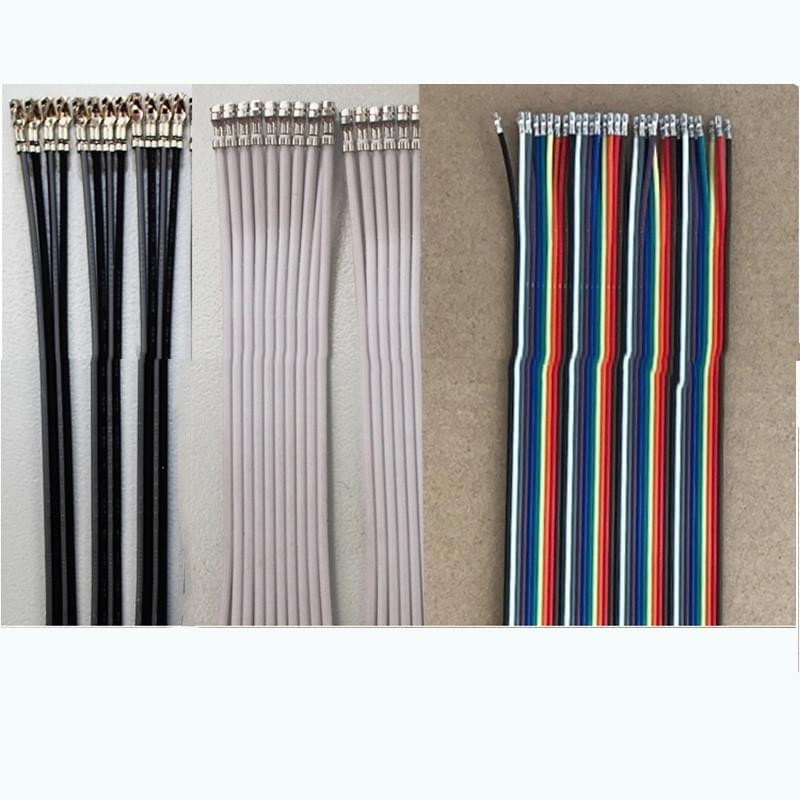

5.Suitable for PH/ZH/EH/XH,etc Rehearsal communication electronics. Terminal for SM/VH/SCN dupont strip connectors.

Function: Crimping Terminal
Crimping force: 1.5T(1T/2T/3T/4T/8T)
Stroke: 40 mm
Voltage: 110V/220V
Power: 600W
Weight: 160kg
Dimension: 1400*800*1550mm
wire range: 2-20P (Ribbon cable )
Packing: Plywood
Warranty: 1 Year
