X-CM201
Fully automatic terminal crimping machine
Full-automatic single head terminal crimp machine

Feature

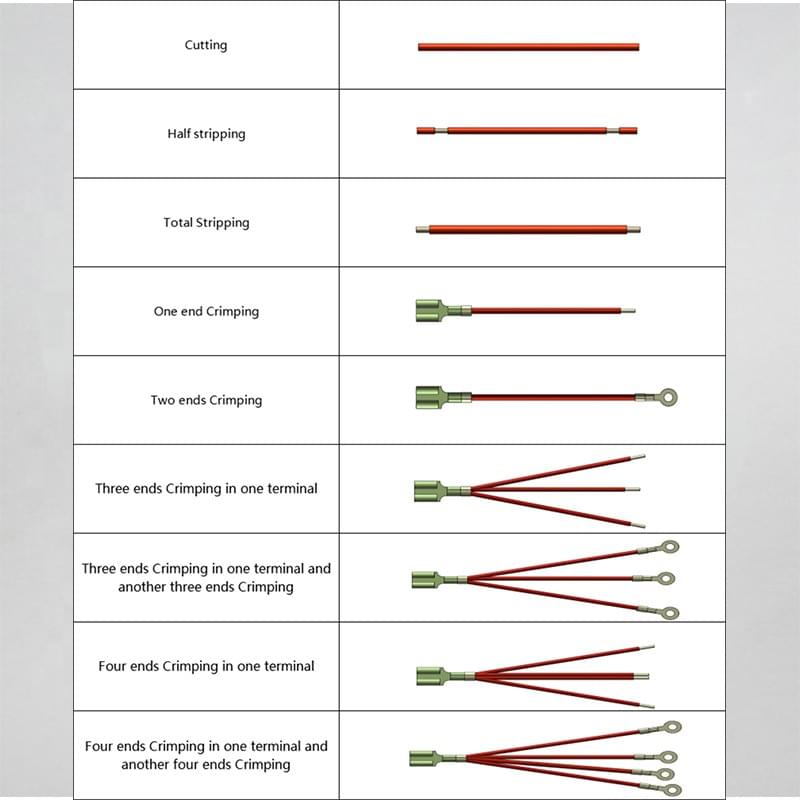

Automatic wire cutting stripping twisting terminal crimping machine, can automatically process of wire cutting,peeling, crimping.
1. The equipment is highly automated, and an ordinary worker with simple training.
2.Modular design, simple adjustment, standard accessories, low maintenance costs;
3. Man-machine interface, easy to learn and easy to operate;
4. High efficiency, stability and intelligence;
5. Use the touch screen operation to control the cutting length, stripping length, cutter value, half peeling value, and the depth of the crimping of the terminal crimping;
6. It is the most automated and most efficient model on the market.


1. Imported original parts, completely cut off the wires, stripping, terminal pressing, etc. Accurate, easy to operate, stable performance
2. Cutter depth is adjusted by computer
3. The whole stripping length is directly set by the menu of touch panel.
4. Fast technical performance adjustment, short adjustment time, easy operation
5. Auto crimping machine suitable for horizontal, straight OTP molds
