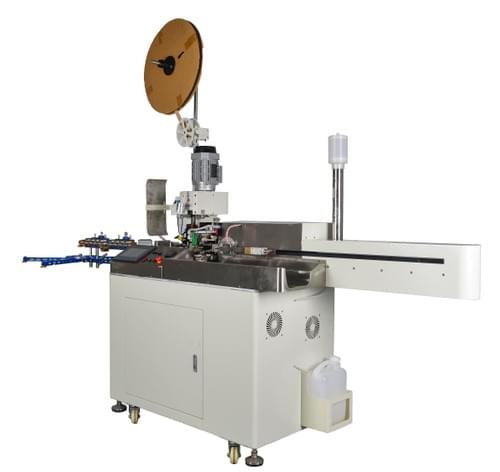

X-CM203B (5 wires)
Automatic Wire cutting & stripping,one end crimping another end tinning(Five wires)

The machine is designed for wire cutting stripping crimping and tinning. It is mainly used in wiring harness field.X-CM203A can process Five wires at same time

Feature
1.The machine is using good quality materials. Imported original parts, completely cut off the wires, stripping, terminal pressing, etc. Accurate, easy to operate, stable performance
2. Cutter depth is adjusted by computer
3. The whole stripping length is directly set by the menu of touch panel.
4. Fast technical performance adjustment, short adjustment time, easy operation
5. Auto crimping machine suitable for horizontal, straight OTP molds.European Style Applicator is optional

Function：Automatic Wire cutting & stripping, one end crimping, another end tinning(one wire)
Voltage：220V/50~60hz
Power Rate：750W
Air Supply：0.5-0.7Mpa
Cutting Length: 27mm—9999mm
Cutting Tolerance: +/-0.1mm
Twisting Length：4mm-10mm
Tinning Length：0.1-10mm
Stripping Length: 0.1mm-10mm
Suitable wire size: AWG14#-AWG30#
Crimping Force: 2.0T
Applicator OTP/ Europe Style available
