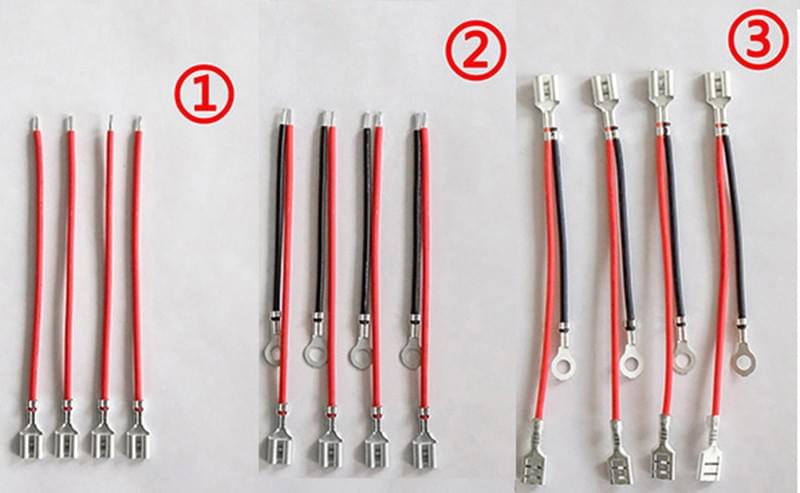

X-CM204A Wire cutting & stripping+crimping (2 ends, 2 wires)
X-CM204B Wire cutting & stripping+crimping (3 ends, 2 wires)

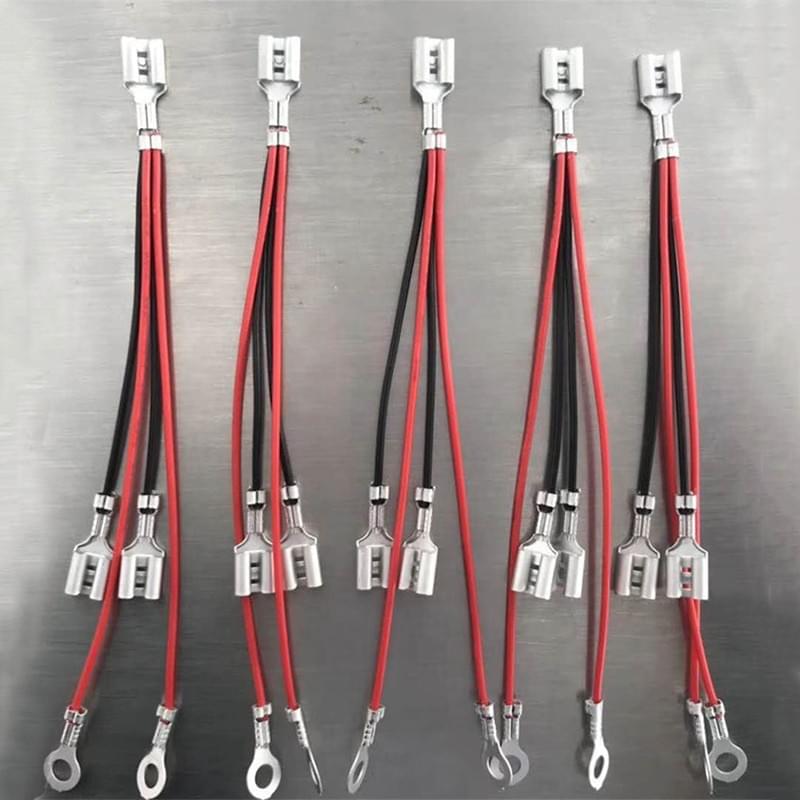

X-CM204C Wire cutting & stripping+crimping (5 ends, 4 wires)

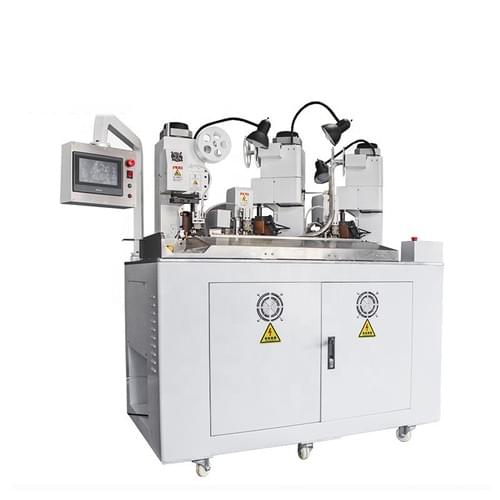

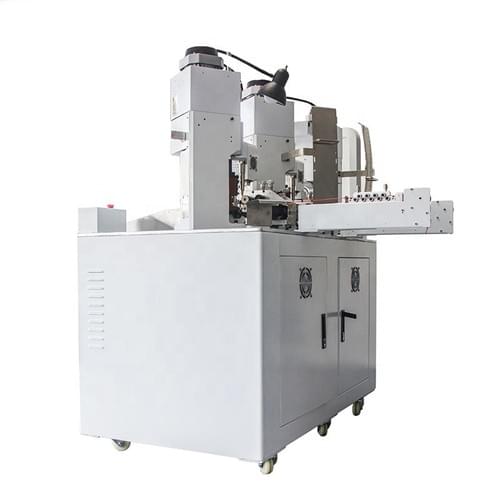

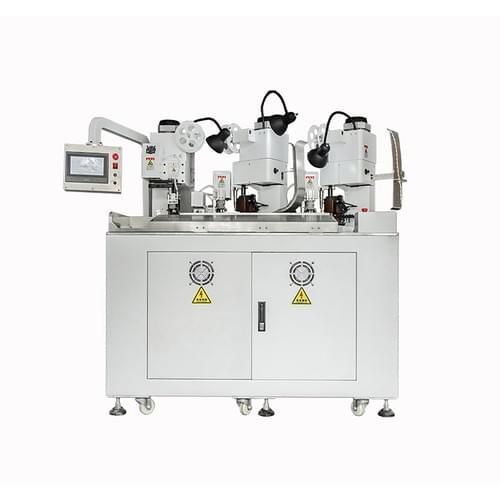

1.A multi-function automatic machine: it can cut wire, strip, single-end terminal, double-end terminal.
2.Advanced software and touch screen technology make the operation easy, and all the parameters of the machine are operated on the display screen.
3.Sturdy, durable and stable; some raw materials of this machine have been heat-treated before being used, blackened and hard-oxidized.
4.Double wire feeding motor is used to avoid the problems of wire feeding length and wire creasing.
5.And complete detection functions of accessories: whether there is a wire, the wire is knotted, the crimping is bad, and the air detection.
6.The crimping position adopts an ultra-quiet terminal machine, which has low noise and uniform strength. It can be equipped with horizontal and vertical molds.
7.All pressure monitoring instruments on the market can be used.

Voltage：220V/50~60hz
Power Rate：2000W
Cutting Length: 55mm—9999mm
Cutting Tolerance: +/-0.1mm
Stripping Length: 0.1mm-8mm
