X-CM205A Wire cutting & stripping+seal inserting+crimping machine (1 crimp, 1 seal)
X-CM205B Wire cutting & stripping+seal inserting+crimping machine (2 crimp, 1 seal)
X-CM205C Wire cutting & stripping+seal inserting+crimping machine (2 crimp, 2 seal)

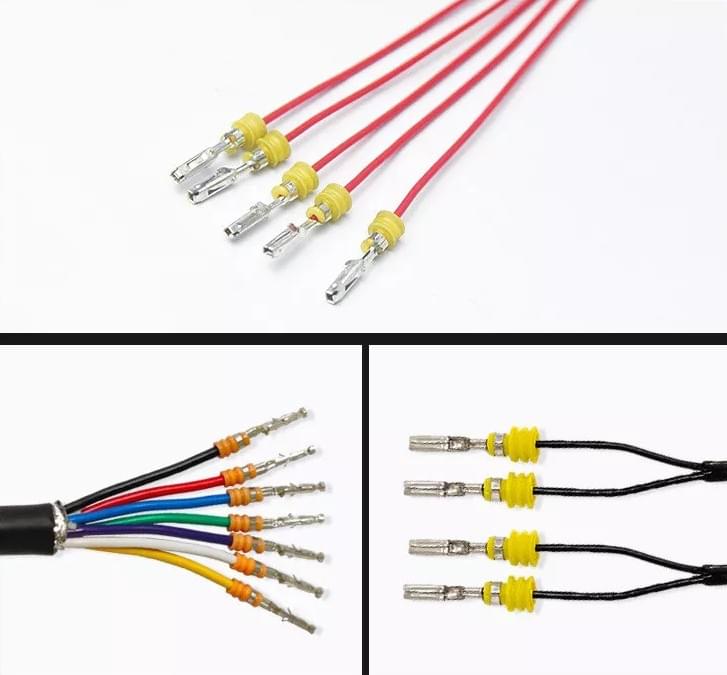

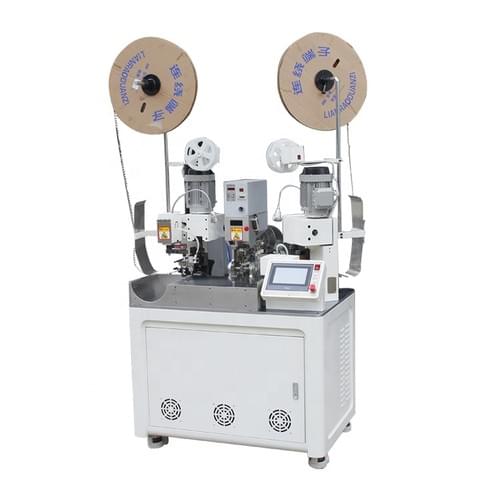

This is a fully automatic machine to process wire cutting, single end stripping, both ends stripping, two ends wire rubber seals loading and two ends terminal crimping.
Function: wire single head stripping, crimping and rubber seals plugging-in.
The Mitsubishi control system makes cable peeling, terminal crimping, and rubber seals inserting very precise.
Touch screen operation, simple and convenient, can set stripping and cutting length, cutting depth, and crimping position.
The automatic detection function of the machine can effectively control the occurrence of defective products, so that they can be found and dealt with in time.

Voltage 220V/50~60hz
Power Rate 2000W
Cutting Length: 50mm—9999mm
Cutting Tolerance: +/-0.1mm
Stripping Length: 0.1mm-15mm
Suitable wire size: AWG16#-AWG28#
Crimping Force: 2.0T
Applicator OTP/ Europe Style available
Dimension 1000*750*1650MM
Weight 350KG
