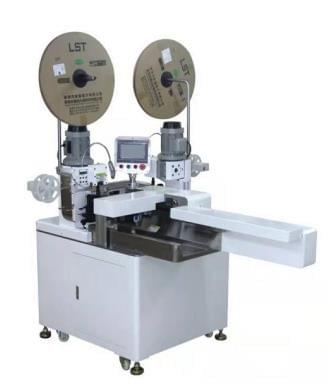

Fully Automatic Flat Ribbon Wire Cable Cutting Stripping And Terminal Crimping Machine

Function：Wire cutting stripping crimping
Speed：1200pcs/hour
Wire Range：AWG#18 - #28
Wire Dividing length：27MM-35MM
Cut lengt：60 - 1000 mm (set unit as 0.1mm)
Cut tolerance：Tolerance 0.5 mm +
Strip length：1.0mm-3.0mm
Strip tolerance：Tolerance +/-0.1mm
Crimp force：1.5Ton
Power supply：AC200V/220V 50HZ 10A (110V/60Hz optional)
Compressed air：0.5-0.7mpa
Warranty：1 year
Machine dimension：1880x1000x1550mm
Weight ：450kg
