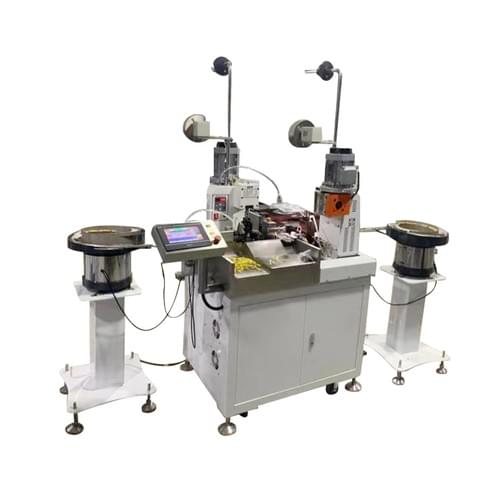

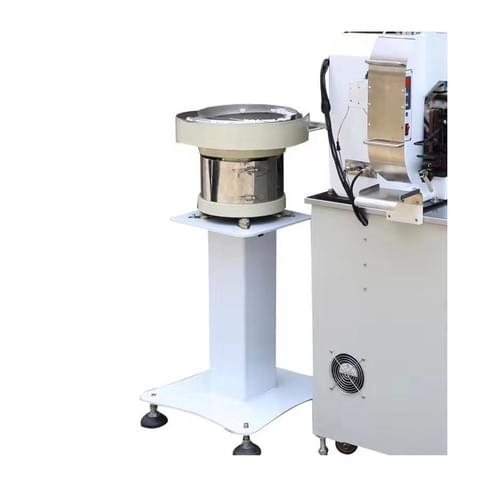

Automatic Wire cutting stripping Crimping Machine With Vibration Plate Feeding Loose Terminals

Function：Automatic loose terminal crimping
Speed：3000-4000pcs/hour
Wire Range：AWG#14 - #28 (can be customized)

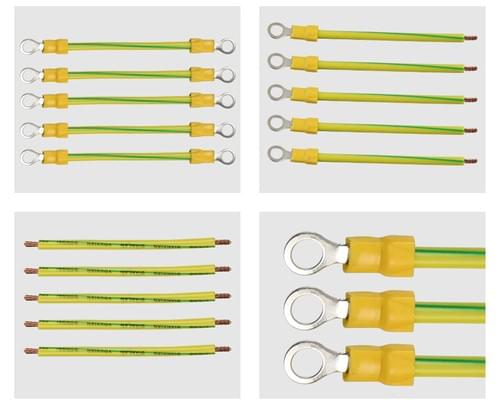

Terminal Type：Loose terminal
Cut length：60 - 1000 mm (set unit as 0.1mm)
Cut tolerance：Tolerance 0.5 mm +
Strip length：1.0mm-8.0mm
Strip tolerance：Tolerance +/-0.1mm
Crimp force： 2.0Ton
Power supply：AC200V/220V 50HZ 10A (110V/60Hz optional)
Compressed air：0.5-0.7mpa
Warranty：1 year
Dimension：1200*800*1500（mm）
Weight： 400kg
