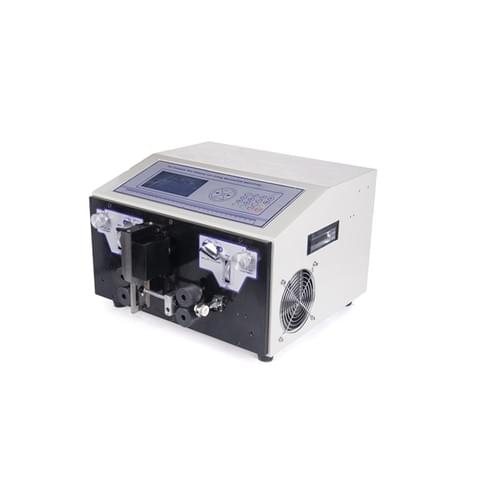

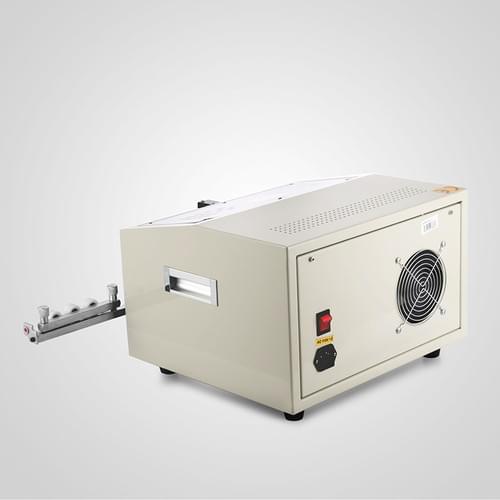

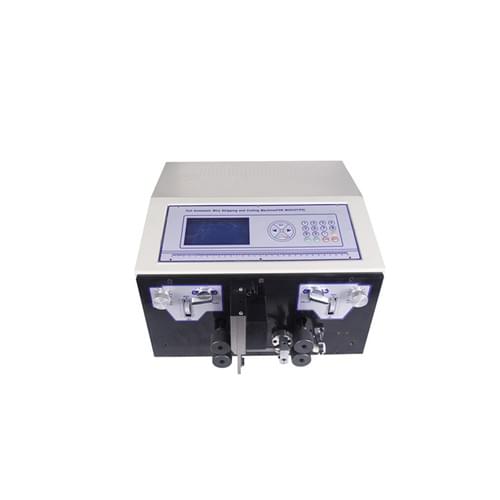

X-CS201 （outer stripping）
Automatic Cutting Stripping Machine for sheathed cable

Multicore wire stripping machine
Sheathed cable insulation peeling machine

Available wire size：MAX 6MM OD Cable
Voltage：AC110/220V 50/60HZ
Power：350W
Dimension：420X390X280mm
Weight：32KG
Cutting length：1-60000mm
Cutting tolerance：±0.002 *L( Cutting length)
Stripping length：Head:0-50mm Tail:0-50mm
Max middle stripping section：13 stripping
Max conduit diameter：Ø10mm
Memory function Can store：MAX 99 program
Suitable cable：PVC/Teflon/silicone cable/glass fiber wire etc
Blade Material：Hard tungsten steel and HSS
Productivity：3000-6000pcs/h (L=100mm)
Drive mode：Four-wheel drive
Adjust Speed：0 slowest 9 fastest
