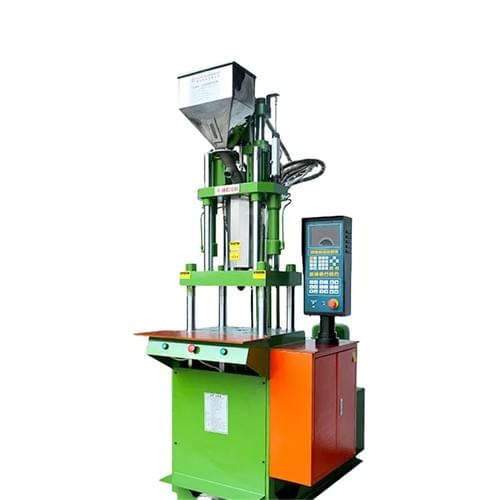

15 ton Manual Plastic Injection Molding Machine


Vertical Plastic Injection Molding Machine

Plastic Processed:
ABS, ABS/PP, EPS, EVA, EVOH, FRPP/PVC, HDPE, HDPE/PP, LDPE, MLLDPE, PA, PC, PE, PE/PP, PET, Polylactic Acid, Polystyrene, PP, PPR, PVC, Other

Model Number:X-IJ150
Style:VERTICAL
Mold Height(mm):25 - 160 mm
Ejector Stroke(mm):116 mm
Ejector Force(kN):12.7
Theoretical Shot Volume(cm³):71.4
Injection Rate (g/s):51.8
Injection Weight (g):67.5 g
Screw Speed (rpm):0 - 190
Screw diameter (mm):28 mm
Distance between Tie Bars:270
Weight (KG):600
Open Stroke(mm):260 mm
Clamping Force (kN):147
Screw Diameter:26-28mm
Min. Mold Thickness:100/25mm
Machine Weight:850kg
Machine Color:Customized
Injection pressure:1183/1019
MACHINE DIMENSION:1.35m*0.92m*2.06m
Platen Size:450mm*280mm
Min. Mold Height:100/25mm
Power (kW):2.2
Warranty:1 Year
