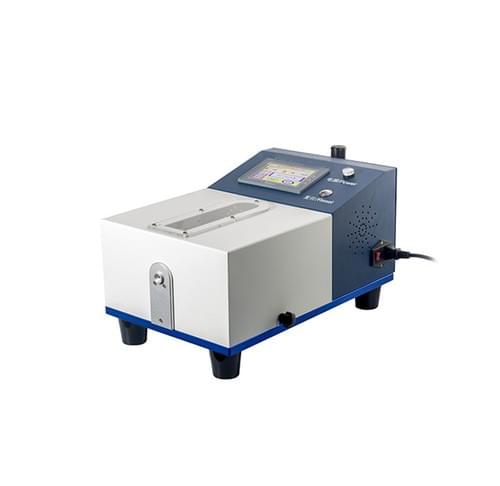

X-S007 automatic optical fiber coating stripping machine, fibre cable cutting stripping machine

It is a new type of fiber optic cable processing equipment that is based on the manufacturers of optical fiber connectors eager to improve production efficiency. In order to solve the problem of manually stripping the skin layer of the optical fiber, the diameter of the optical fiber is 09mm, and the diameter of the glass fiber in the center is 0.125mm. Damage to the internal glass fiber, and manual fiber stripping, low precision, low work efficiency, low product quality.

● The machine is innovative in design, the operation of the machine is ergonomic, and it is suitable for automatic stripping of 2-8 core ribbon fibers. .
● Adopting independent heating method, the skin is easier to separate from the glass fiber coating.
● The automatic peeling method is adopted to eliminate the influence of manual factors, and the performance is reliable.

Power Supply：220V/ 50~60hz
Power Rate：20W
Air Pressure：0.5-0.6Mpa
Product size：3.0/2.0
Aramid length range：7-13mm
Stripping Length：30-40mm
Output：>900pcs/hour
Dimension：500*300*230mm
Weight：11kg
