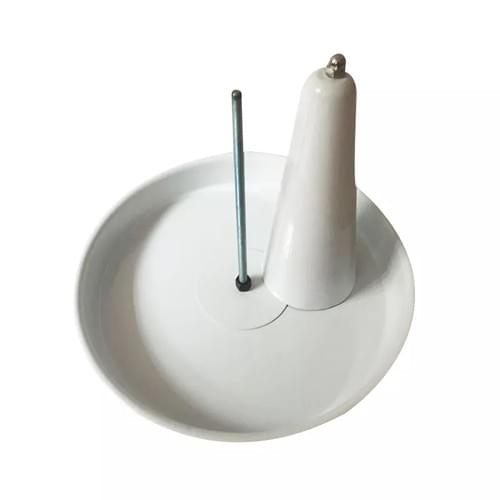

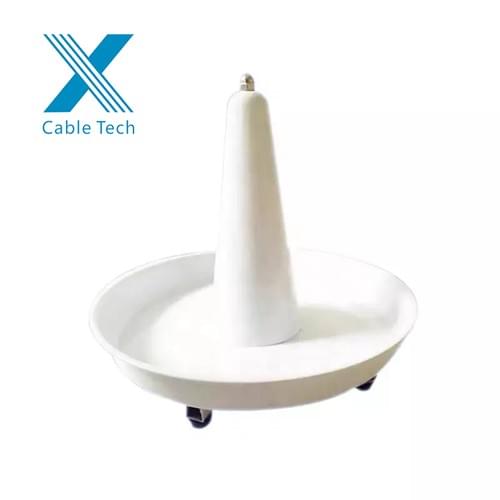

Cable pay-off tray Automatic wire feeder Small uncoiler

This machine is a passive pay-off reel, specially designed for automatic terminal and wire cutting and stripping machine.

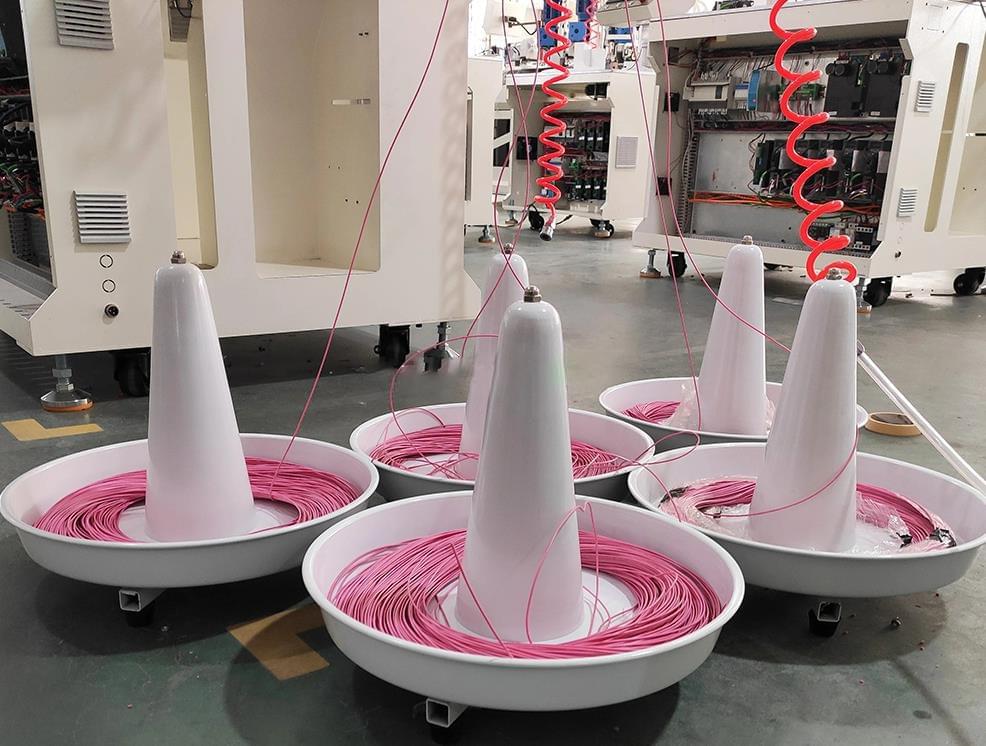

Easy to do. Place the entire coil of wire on a pay-off reel, then guide it to an automated terminal.

Function：wire feeding
Net machine weight：3.5KG

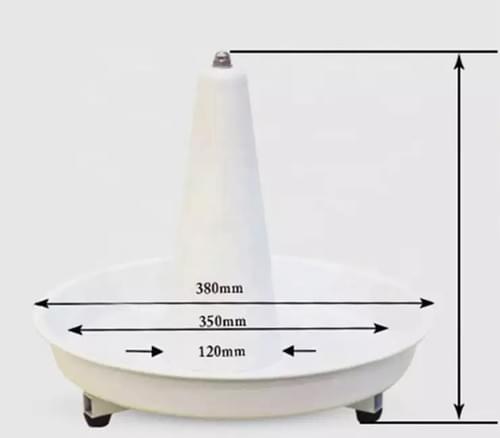

Plate outer diameter：380MM
Plate inner diameter：350MM
Plate spindle：120MM

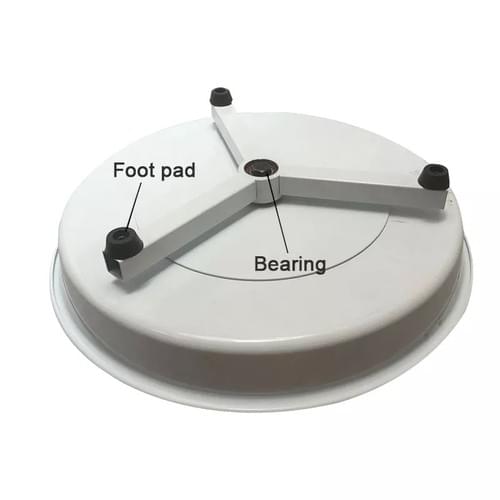

Max bearing:15KG
Size：390MM*390MM*400MM
