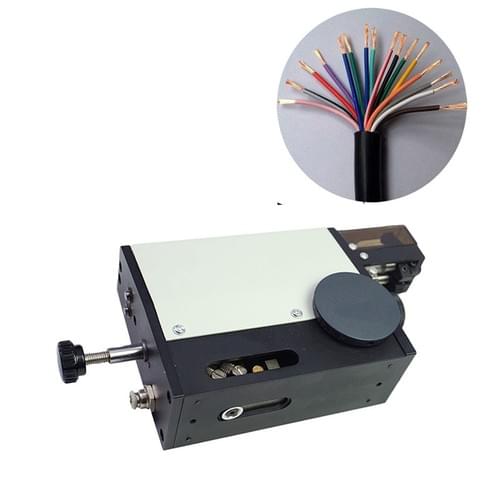

X-S003-2015 Pneumatic wire stripping machine, high precision wire stripper

Feature:
1. Pneumatic control, easy operation.
2. High precision without damaging the core wire.
3. Adaptation line 0.3-2.mm
4.Easy to test the tension of the terminal and wire.
5. Test strength 0-50KG

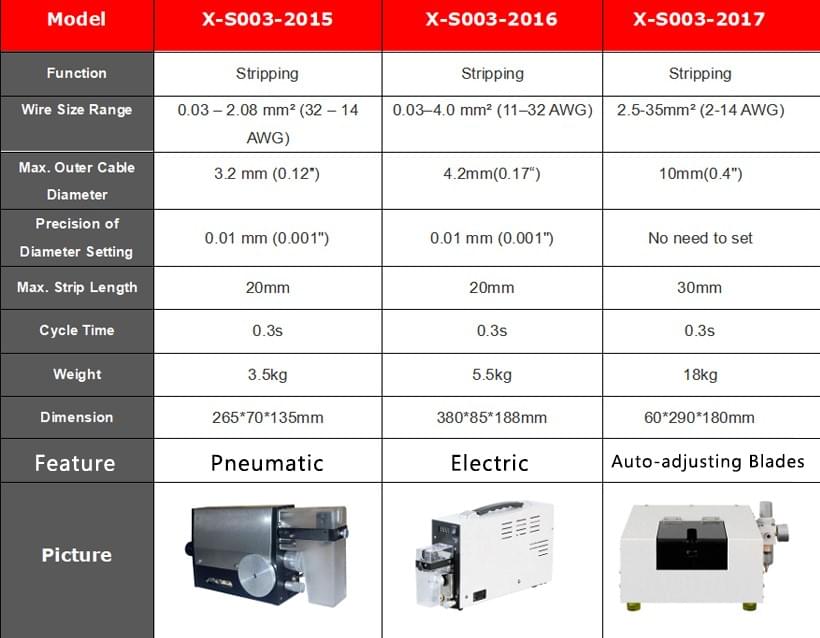

Technical data:

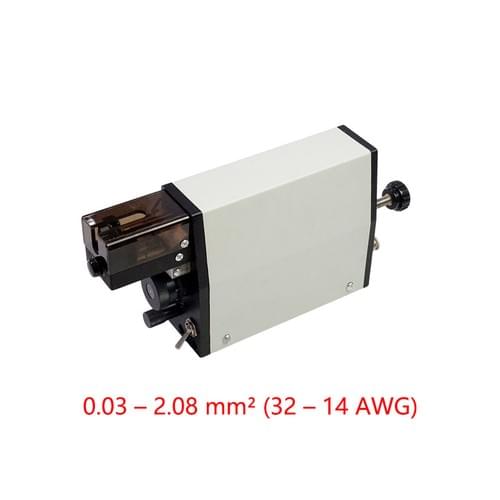

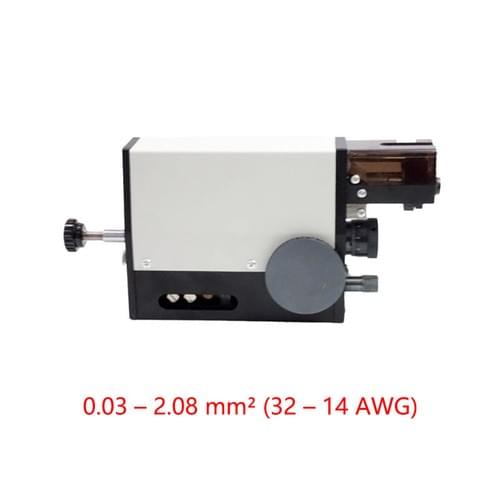

Wire Size Range 0.03 – 2.08 mm² (32 – 14 AWG)
Max. Outer Cable Diameter 3.2 mm (0.12“)
Stripping Length Increments Full strip: 0.5 mm (0.019“)
Partial strip: 2 mm (0.078“)
Precision of Diameter Setting 0.01 mm (0.001“)
Max. Strip Length 20 mm
Cycle Time approx. 0.3 s
Dimensions (L x W x H) 265 x 70 x 135 mm (10.4“ x 2.8“ x 5.3“)
Weight Net: 2.0 kg (4.4 lbs.)
Gross: 3.0 kg (7.7 lbs.)
