X-S003-2017  Pneumatic Multi-core cable stripping machine
  • X-S003-2017  Pneumatic Multi-core cable stripping machine
  • X-S003-2017  Pneumatic Multi-core cable stripping machine
  • X-S003-2017  Pneumatic Multi-core cable stripping machine

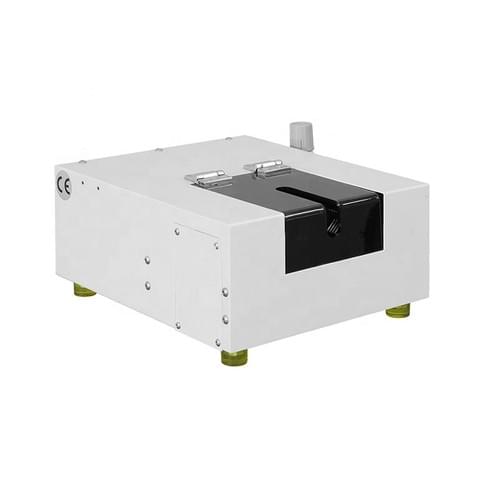

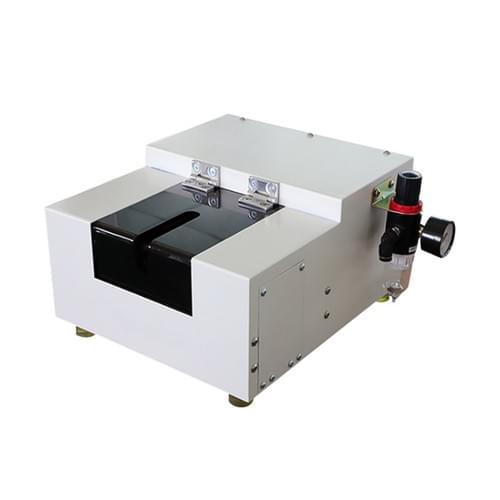

X-S003-2017 Pneumatic Multi-core cable stripping machine

Versatile uses:
Suitable for single-conductor wires and inner wires of multi-core cables . The wire size is up to 35 mm² .Strip length up to 30 mm. Universal V-blades without blade change.

Simple operation:
Automatic trigger via sensor. It is Compact and mobile, Electric & pneumatic drive for versatile use. It is very simple to use, you don’t need to change any blades for stripping wires of different diameters.. Just put the wire inside, it can work.

Function:Cable stripping, Universal, No adjustment needed, Full strip, Partial Strip
Voltage:220V/50-60hz
Dimension :360*290*180(mm)
Weight:20KG
Wire Range:2.5-35mm²
Stripping Length:2-30mm
Raw Material Type:PVC, PUR, Rubber, Teflon etc
Air supply:0.5-0.7mpa
More Details

X-S003-2015     X-S003-2016
